Quick Ship Casters

5″ Standard Caster

• Standard caster specified for all mobile workstations unless otherwise specified.
• “Total Lock” fully lockable caster.
• Weight capacity: 250 lbs per caster.

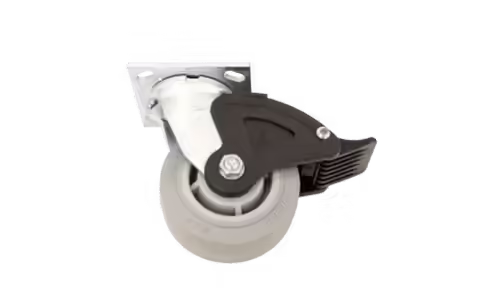

5″ Heavy-Duty Caster

• Extra wide wheel design.
• “Total Lock” fully lockable caster.
• Weight capacity: 500 lbs per caster.

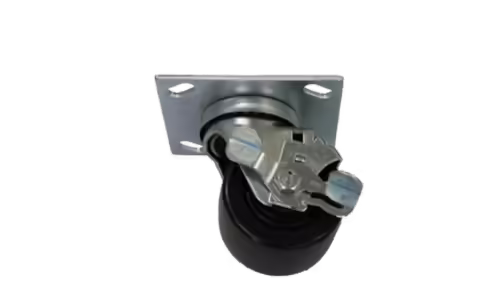

3″ Standard Caster

• 3″ diameter side lock caster.
• Lowers worksurface by 2″ compared to standard 5″ caster.
• Available for both fixed-height and adjustable height workstations.
• Weight capacity: 400 lbs per caster.

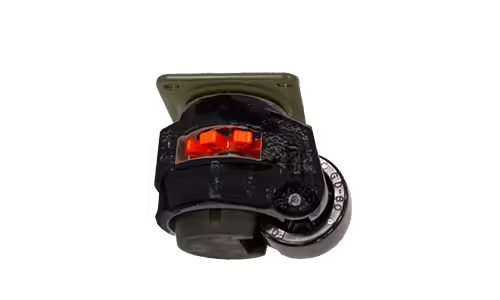

Leveling Caster Plate Mounted (Low Clearance)

• Hand or tool-adjustable leveling caster.
• Provides low profile clearance (approximately 1/2″) when caster is retracted.
• Lowers worksurface by 2″ compared to standard 5″ caster.
• Available for both fixed-height and adjustable height workstations.
• Working load rating: 1100 lbs per caster.

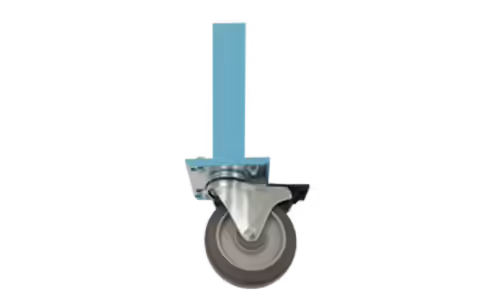

Mobile Retrofit Kit

Installation of a mobile retrofit kit requires removal of existing leg extenders; insertion of new caster plate assemblies, installation of casters, as well as a swaybar.

• May be retrofitted on site to all stationary standard and heavy duty workstations unless otherwise specified.
• Retrofit kit accepts all standard casters.
• May affect workstation work height based on caster selection.
• Work height range based on use of existing 30″/37″ WH Leg Sections will be:
  — With 3″ Casters: 33.25″/ 40.75″
  — With 5″ Casters: 35.5″/43″

Please contact your Design Specialist for ordering information.
