Wafer Handling Workstations — Vibration-Isolated, ESD-Safe Platforms

The number of dies per wafer depends on wafer diameter and individual die size. A standard 300mm wafer can yield hundreds to thousands of dies depending on the circuit design. Larger wafers and smaller die sizes increase yield. Accurate die count calculations are critical for semiconductor production planning and cost-per-unit analysis.

A wafer sorter is automated equipment used in semiconductor fabs to organize, transfer, and track wafers between process steps or storage cassettes. Sorters use robotic arms and sensors to handle wafers without contamination or damage. ESD-safe, vibration-isolated workstations adjacent to wafer sorters protect sensitive wafers during manual inspection and transfer operations.

Our wafer handling workstations comply with ANSI/ESD S20.20 and IEC 61340-5-1 — the leading international standards for electrostatic discharge control. Each system also meets ESD TRS3 technical report requirements and comes with complete compliance documentation packages ready for facility audits and quality management reviews.

Each workstation features a factory-installed grounding system with a flush-mounted ground bolt, a 6-foot ground wire, and a bench-mounted ground connection for two wrist straps with 10-inch ground wires. The welded steel frame maintains grounding integrity across the entire bench structure as accessories and loads are added or changed.

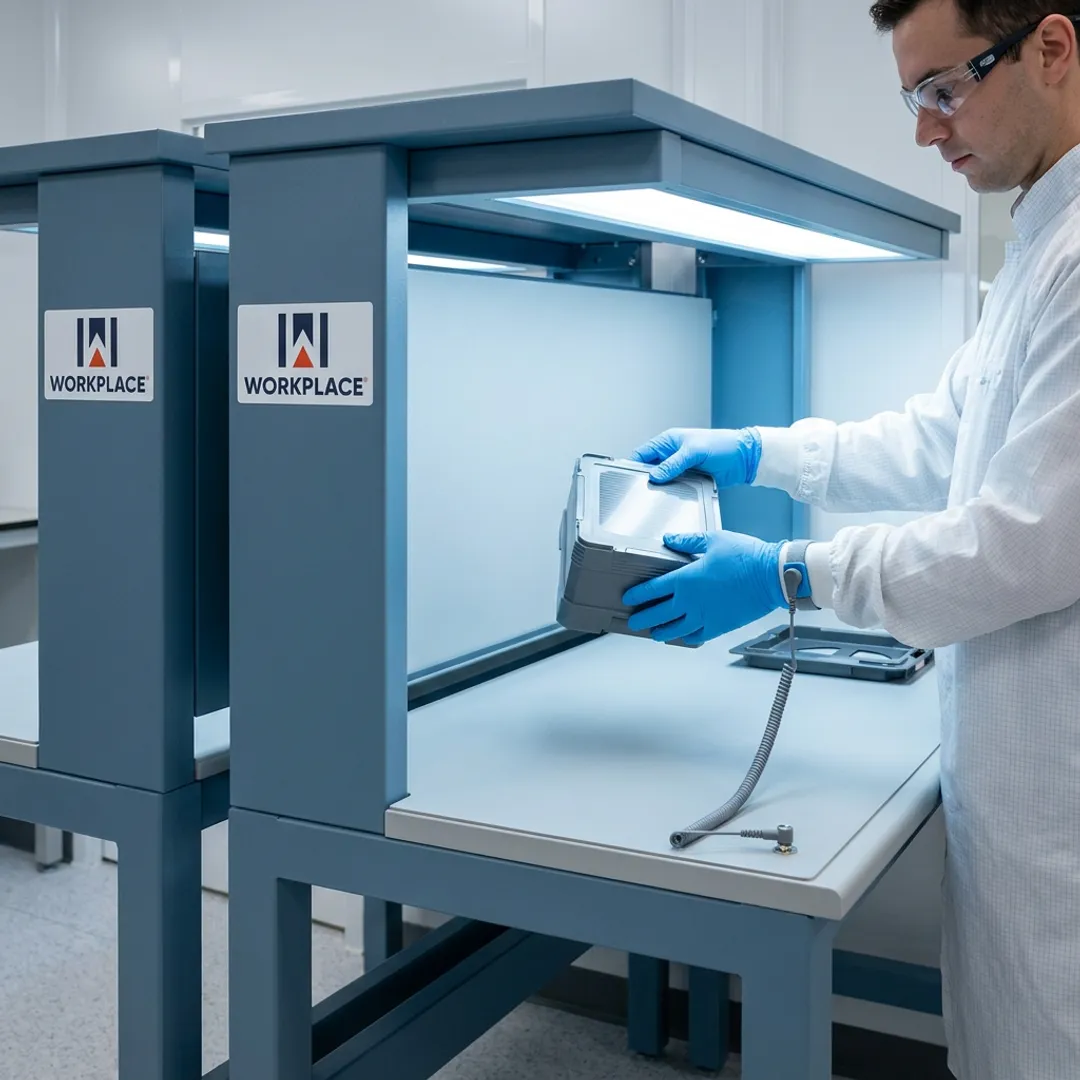

Yes. Our ESD workstation systems are designed for cleanroom and controlled environment electronics production. The ESD-safe laminate surface, grounded welded steel frame, and contamination-controlled configuration options make them suitable for semiconductor manufacturing facilities, wafer inspection stations, and Tier 1/2 semiconductor supplier environments requiring strict ESD and contamination control.

Custom ESD workstation configurations are typically delivered within 4–6 weeks from order finalization. A 48-hour technical review is required before order finalization to ensure compliance and specification accuracy. All systems are manufactured domestically in Londonderry, NH, eliminating offshore lead time risk. White-glove installation services are also available.
