The ideal solution for work areas requiring storage combined with a generous work surface.
Storage workstation are available in three basic styles:
- Sliding Doors.
- Open Storage.
- Hinged Doors.
All storage units feature:
- Worksurface overhang of 1” at front; 2” on each end. The top is flush with the rear of the workstation.
- Available interior shelf, which is height adjustable in 1-1/2” increments.
- Mobile Option transforms the unit into a versatile mobile workstation.
- Worksurface height between 36” and 43” is factory set and must be determined at time of order.
Storage Workstation Add-On Accessories
Increase the flexibility to your Storage Workstation by adding overtable accessories, such as divider shelving and parts bin racks—all available from our wide selection of Accessories.
Open Configuration: Stationary
To Order, Please Specify Model No. + Color Code + Worksurface Code + Accessories
Other Options:
- ADDITIONAL SIZES AVAILABLE: Contact Your Design Specialist
| STANDARD SIZES: STATIONARY | |||
| Model No. | Depth | Length | Adjustable Height |
| 6600-2460-NDS | 24” | 60” | 35″ – 42″ |
| 6600-2472-NDS | 24” | 72” | 35″ – 42″ |
| 6600-3048-NDS | 30” | 48” | 35″ – 42″ |
| 6600-3060-NDS | 30” | 60” | 35″ – 42″ |
| 6600-3072-NDS | 30” | 72” | 35″ – 42″ |
| 6600-3648-NDS | 36” | 48” | 35″ – 42″ |
| 6600-3660-NDS | 36” | 60” | 35″ – 42″ |
| 6600-3672-NDS | 36” | 72” | 35″ – 42″ |
- Base unit ships assembled
Open Configuration: Mobile
To Order, Please Specify Model No. + Color Code + Worksurface Code + Accessories
Other Options:
- ADDITIONAL SIZES AVAILABLE: Contact Your Design Specialist

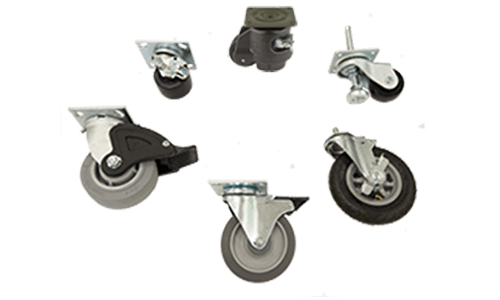

- Caster options
| STANDARD SIZES: MOBILE | |||
| Model No. | Depth | Length | Fixed Height |
| 6600-2460-NDM | 24” | 60” | 36″ |
| 6600-2472-NDM | 24” | 72” | 36″ |
| 6600-3048-NDM | 30” | 48” | 36″ |
| 6600-3060-NDM | 30” | 60” | 36″ |
| 6600-3072-NDM | 30” | 72” | 36″ |
| 6600-3648-NDM | 36” | 48” | 36″ |
| 6600-3660-NDM | 36” | 60” | 36″ |
| 6600-3672-NDM | 36” | 72” | 36″ |
- Interior space in mobile unit is reduced by 6″
- Base unit ships assembled.
Sliding Door Configuration: Stationary
To Order, Please Specify Model No. + Color Code + Worksurface Code + Accessories
Other Options:
- ADDITIONAL SIZES AVAILABLE: Contact Your Design Specialist
| STANDARD SIZES: STATIONARY | |||
| Model No. | Depth | Length | Adjustable Height |
| 6600-2460-SDS | 24” | 60” | 35″ – 42″ |
| 6600-2472-SDS | 24” | 72” | 35″ – 42″ |
| 6600-3048-SDS | 30” | 48” | 35″ – 42″ |
| 6600-3060-SDS | 30” | 60” | 35″ – 42″ |
| 6600-3072-SDS | 30” | 72” | 35″ – 42″ |
| 6600-3648-SDS | 36” | 48” | 35″ – 42″ |
| 6600-3660-SDS | 36” | 60” | 35″ – 42″ |
| 6600-3672-SDS | 36” | 72” | 35″ – 42″ |
Base unit ships assembled
Sliding Door Configuration: Mobile
To Order, Please Specify Model No. + Color Code + Worksurface Code + Accessories
Other Options:
- ADDITIONAL SIZES AVAILABLE: Contact Your Design Specialist
- Caster options
STANDARD SIZES: MOBILE Model No. Depth Length Fixed Height 6600-2460-SDM 24” 60” 36″ 6600-2472-SDM 24” 72” 36″ 6600-3048-SDM 30” 48” 36″ 6600-3060-SDM 30” 60” 36″ 6600-3072-SDM 30” 72” 36″ 6600-3648-SDM 36” 48” 36″ 6600-3660-SDM 36” 60” 36″ 6600-3672-SDM 36” 72” 36″ - Interior space in mobile unit is reduced by 6″
- Base unit ships assembled.
Hinged Door Configuration: Stationary
To Order, Please Specify Model No. + Color Code + Worksurface Code + Accessories
Other Options:
- ADDITIONAL SIZES AVAILABLE: Contact Your Design Specialist
| STANDARD SIZES: STATIONARY | |||
| Model No. | Depth | Length | Adjustable Height |
| 6600-2460-HDS | 24” | 60” | 35″ – 42″ |
| 6600-2472-HDS | 24” | 72” | 35″ – 42″ |
| 6600-3048-HDS | 30” | 48” | 35″ – 42″ |
| 6600-3060-HDS | 30” | 60” | 35″ – 42″ |
| 6600-3072-HDS | 30” | 72” | 35″ – 42″ |
| 6600-3648-HDS | 36” | 48” | 35″ – 42″ |
| 6600-3660-HDS | 36” | 60” | 35″ – 42″ |
| 6600-3672-HDS | 36” | 72” | 35″ – 42″ |
- Base unit ships assembled
Hinged Door Configuration: Mobile
To Order, Please Specify Model No. + Color Code + Worksurface Code + Accessories
Other Options:
- ADDITIONAL SIZES AVAILABLE: Consult Your Design Specialist
- Caster options
| STANDARD SIZES: MOBILE | |||
| Model No. | Depth | Length | Fixed Height |
| 6600-2460-HDM | 24” | 60” | 36″ |
| 6600-2472-HDM | 24” | 72” | 36″ |
| 6600-3048-HDM | 30” | 48” | 36″ |
| 6600-3060-HDM | 30” | 60” | 36″ |
| 6600-3072-HDM | 30” | 72” | 36″ |
| 6600-3648-HDM | 36” | 48” | 36″ |
| 6600-3660-HDM | 36” | 60” | 36″ |
| 6600-3672-HDM | 36” | 72” | 36″ |
- Interior space in mobile unit is reduced by 6″
- Base unit ships assembled.
Full-perimeter, all-metal framework provides exceptional stability and support of selected worksurface.
Built-in drawer brackets allow quick and simple installation of storage drawer(s) at any time.
Manual adjustable workheight provides range of 36″ up to 43″H.
Interior Shelf is adjustable in 1-1/2″ increments.
Sliding doors glide on trackless roller guides, eliminating dust and debris collection typically found on track-mounted doors.
Laminate
PLASTIC LAMINATE TOPS
With Post-Formed Front Edge or Standard Front Edge
The 1-1/16” thick Plastic Laminate Top features an easy-to-clean surface for many general purpose applications. A core of 1” dimensionally stable flakeboard is covered with a plastic laminate surface sheet and edging of .039” thick high-pressure laminate. In addition, a plastic laminate backer sheet of approx. .020” thickness covers the underside of the core stock and ¼-20 metal inserts are located in the underside of the tops for ease of fastening to many of the Workplace frames. The resulting top is a well-balanced, long-lasting work surface.
To specify a standard color Plastic Laminate Top, please use the following codes:
| Color | Post-Formed Front Edge Order Code | Standard Edge Order Code | |
|---|---|---|---|
 | Neutral Glace | PL-01PF | PL-01SQ |
 | Grey Glace | PL-02PF | PL-02SQ |
 | Frosty White | PL-03PF | PL-03SQ |
 | Black | PL-04PF | PL-04SQ |
 | Fashion Grey | PL-05PF | PL-05SQ |
 | Non-Standard Color* | PL-00PF | PL-00SQ |
*Most Wilsonart International plastic laminate colors are available on special order.
Contact us or call 1-800-258-9700 for assistance.
ESD LAMINATE TOPS
With Post-Formed Front Edge or Standard Front Edge
The ESD Tops feature ESD Laminate, a decorative, clean, amino resin laminate which rapidly dissipates static electrical charges, and is recommended for use in areas which must be free of static electrical charges. The ESD Top is equipped with a flush-mount grounding system (factory-installed) with grounding hardware located on the underside of the Top. A flush-mount grounding bolt is located in the top of the worksurface (at the rear). The flush-mount ground system also includes two banana plugs set flush in the front edge for convenient connection of customer-supplied wrist straps. The ESD Top is fabricated with a dimensionally stable 1” flakeboard used as core stock, with a surface sheet of ESD Laminate covering the top surface and all edges. A plastic laminate backing sheet of at least .020” thickness covers the underside of the top.
Note: ESD Tops require connection to your earth ground system.
To specify an ESD Laminate Top, please use the following codes:
| Color | Post-Formed Front Edge Order Code | Standard Edge Order Code | |
|---|---|---|---|
 | White | ES-03PF | ES-03SQ |
| Non-Standard Color* | ES-00PF | ES-00SQ |
*Additional ESD laminate colors are available. Contact us or call 1-800-258-9700 for assistance.
CHEMICAL RESISTANT LAMINATE TOPS
With Post-Formed Front Edge or Standard Front Edge
The Chemical Resistant Laminate Tops are fabricated in the same manner as the Plastic Laminate Tops. The laminate is a high-pressure decorative laminate recommended for use where accidental spillage of chemical reagents is likely to occur.
To specify a Chemical Resistant Laminate Top, please use the following codes:
| Color | Post-Formed Front Edge Order Code | Standard Edge Order Code | |
|---|---|---|---|
 | Black | CR-04PF | CR-04SQ |
| Non-Standard Color* | CR-00PF | CR-00SQ |
*Additional Chemical Resistant Top colors available. Please call 1-800-258-9700 for assistance.
Resin
EPOXY RESIN TOPS
Epoxy Resin Tops are molded from a modified epoxy resin that has been especially compounded and cured to provide optimum physical and chemical resistance required for a heavy duty laboratory working surface. Tops are 1” in thickness with a drip groove provided on the underside of exposed edges; all finished edges have a slight bevel. Sinks and service fixtures are also available upon request.
Note: Silicone adhesive is supplied to mount Top.
To specify an Epoxy Resin Top, please use the following code:
| Color | Order Code | ||
|---|---|---|---|
| Black | ER-01 | |
*Additional Epoxy Resin Top colors are available by request. Please call 1-800-258-9700 for assistance.
Note: Add-on Accessories, that suspend from framework (i.e. hanging drawer, keyboard tray, CPU Caddy, etc.) may not be added to workstation after Resin Top is cemented to framework.
PHENOLIC RESIN TOPS
Phenolic Resin Tops provide a homogeneous blend of modified phenolic resins fused together under high pressure and heat in specially designed thermoset press molds to form a solid black chemical resistant composite throughout the entire thickness of the top.
Tops are 1” in thickness with a drip groove provided on the underside of the exposed edges.
Note: Silicone adhesive is supplied to mount Top.
To specify a Phenolic Resin Top, please use the following code:
| Color | Order Code | ||
|---|---|---|---|
| Black | PR-01 | |
*Additional Phenolic Resin Top colors are available by request. Please call 1-800-258-9700 for assistance.
Wood
MAPLE TOPS
The 1-3/4” thick Maple Tops are constructed of the finest hard maple, fully cured and kiln-dried. The tough butcher-block construction includes placing the laminations on edge and bonding into a single self-supporting solid panel. Front and rear of the maple top top have a ¼” radiused beveled edge.
The Maple Tops may be refinished by sanding. Tops are coated with a Durakryl 102 finish. This rugged acrylic is highly resistant to water, alcohol, detergents, and other solvents.
Note: Please state if end use is to be for food service or preparation.
To specify a Maple Top, please use the following code:
| Color | Order Code | ||
|---|---|---|---|
 | Maple | MP-01 | |
Steel
STAINLESS STEEL TOPS
The Stainless Steel Tops are designed as an inverted pan-type top. They are backed with a 1-1/8″ plastic laminate core. The core is fastened to the table frame with 1/4-20 metal inserts, and the steel pan is then placed directly over the core. With this method, the usual drumming and noise of a straight metal top is minimized and in some cases, even eliminated.
The standard stainless material is type No. 304 polished finish*.
To specify a Stainless Steel Top, please use the following code:
| Color | Order Code | ||
|---|---|---|---|
 | Stainless Type 304 | SS-01 | |
*Type No. 316, No. 2B finish acid resistant stainless is available by special order. Please call 1-800-258-9700 for assistance.
COLD-ROLLED STEEL TOPS
The Cold-Rolled Steel Tops are designed as an inverted pan top. They are backed with a 1-1/8″ fiberboard. The core is fastened to the table frame with 1/4-20 metal inserts; the cold-rolled steel top is then placed directly over the core.
The Cold-Rolled Steel Tops are powder-coated to match the color of the workstation unless specified otherwise.
To specify a Cold-Rolled Steel Top, please use the following code:
| Color | Order Code | ||
|---|---|---|---|
 | Same as workstation | CS-01 | |
Workplace Modular Systems metal products feature a highly durable, environmentally friendly powder-coat finish.
STANDARD COLORS
| WHITE | Color Code: 0006 |
 | OYSTER | Color Code: 0150 |
 | SILVER GRAY (Semi-Metallic) | Color Code: 0002 |
 | TAN | Color Code: 0001 |
 | CHATEAU BLUE| Color Code: 0015 |
 | MERCURY BLUE | Color Code: 0100 |
 | NAVY BLUE | Color Code: 0900 |
 | BURGUNDY | Color Code: 0950 |
 | BLACK WRINKLE (Textured Finish) | Color Code: 0400 |
 | BLACK (Semi-Gloss) | Color Code: 0018 |
ADDITIONAL COLORS
Many other premium colors are available. Please contact Workplace Modular Systems for additional color selections.
COLOR-MATCHING
Color-matching is also available, subject to additional charge and extended lead time for color-match process.
IMPORTANT!
Actual product color may vary significantly from colors shown above due to color calibration and resolution of viewer monitors. For best color accuracy, please call Workplace at 1-800-258-9700 to request sample metal color chips.
